Mount PRO and PLUS dome cameras
In this article, we’ll guide you through securely mounting and adjusting the PRO or PLUS dome camera on the wall or ceiling and adjusting it to the desired angle. The process is the same for both models, even though the images feature our XD50 model. We recommend performing the installation on a dry day to prevent moisture from entering the camera.
Step 1: prepare the wall
Select the appropriate hardware based on the surface material. We’ve included universal wall plugs and screws (PH2) suitable for most standard applications. If you’re using your own screws, ensure they have a 4 mm diameter.

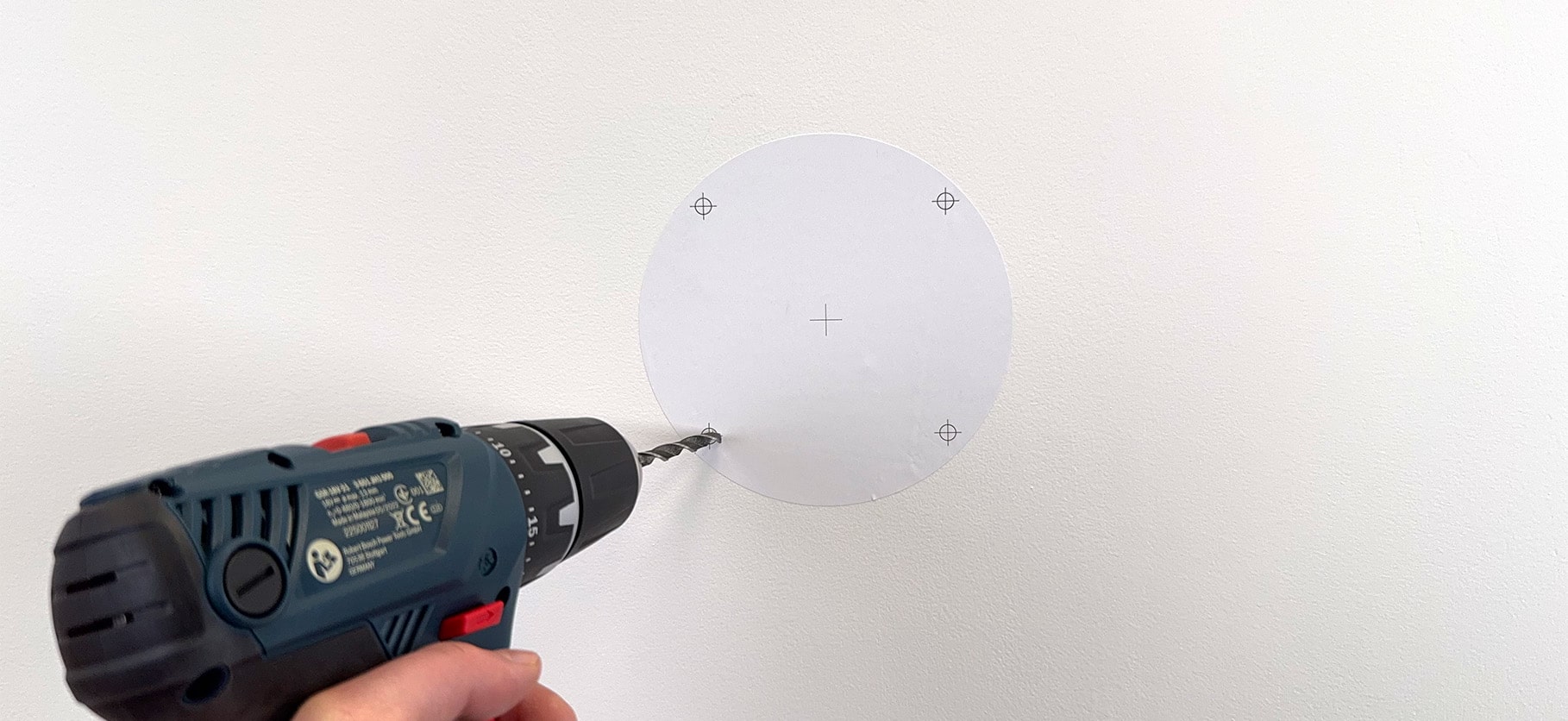

Use the mounting template to mark the drill spots, then:
- For the wall plugs, drill a 6 mm hole.
- For cable routing through the wall: drill a 20 mm hole.
If you prefer not to drill a 20 mm hole, use a wall bracket or junction box to house the camera's connector. This reduces the required hole size to the cable diameter instead of the connector:
- 12 mm when using the included, prefabricated cable.
- 6 mm if you are creating the cable yourself.
Step 2: remove the camera cover

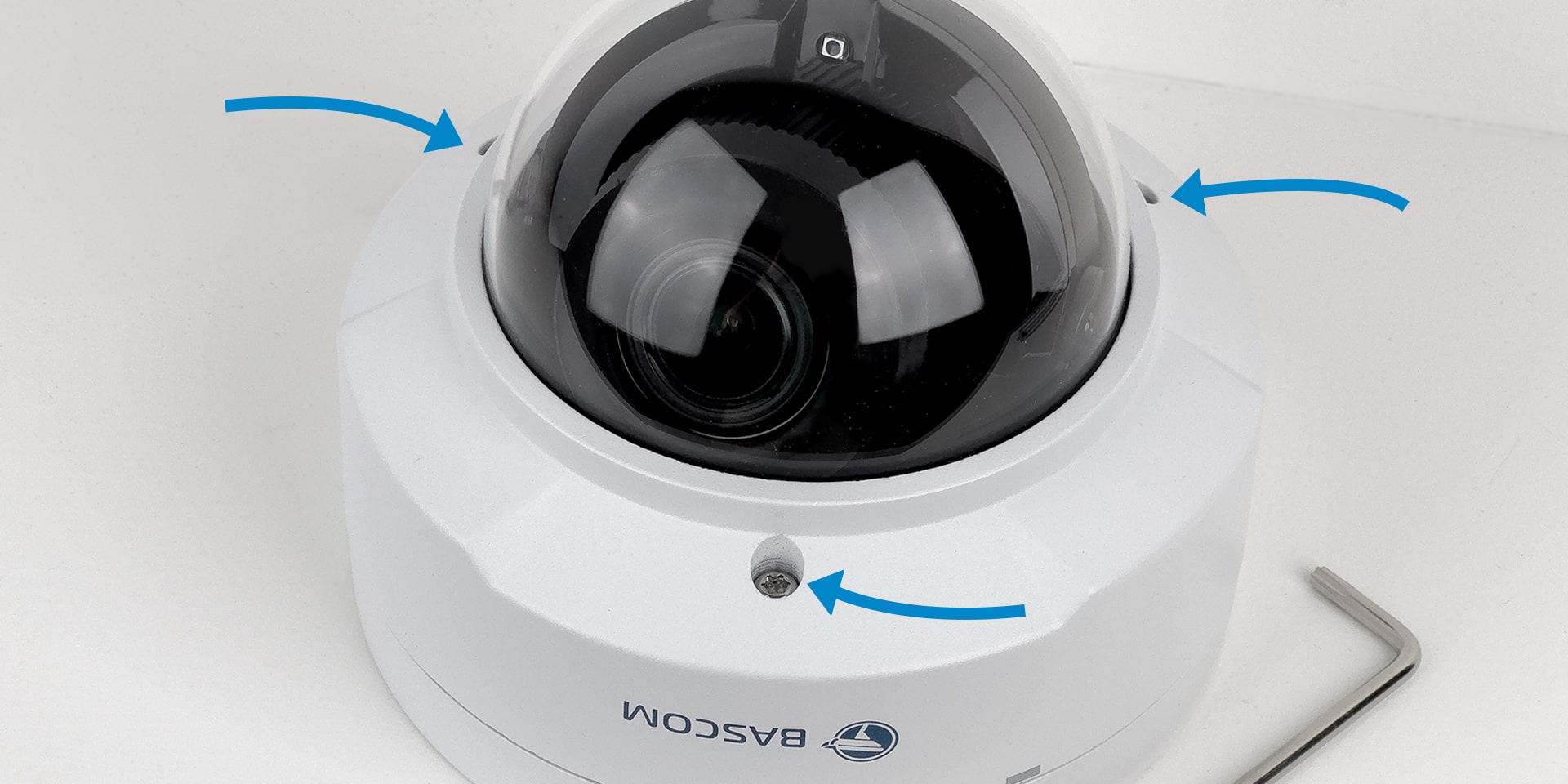

Keep the protective foil on the cover to avoid fingerprints during installation. Use the provided Torx key (T20) to loosen the three bolts on top of the camera, then remove the cover. Do not detach the security latch connecting the cover to the base.
Step 3: mount the camera
If mounting the camera outdoors, use the waterproof connector to protect the connection from weather exposure.

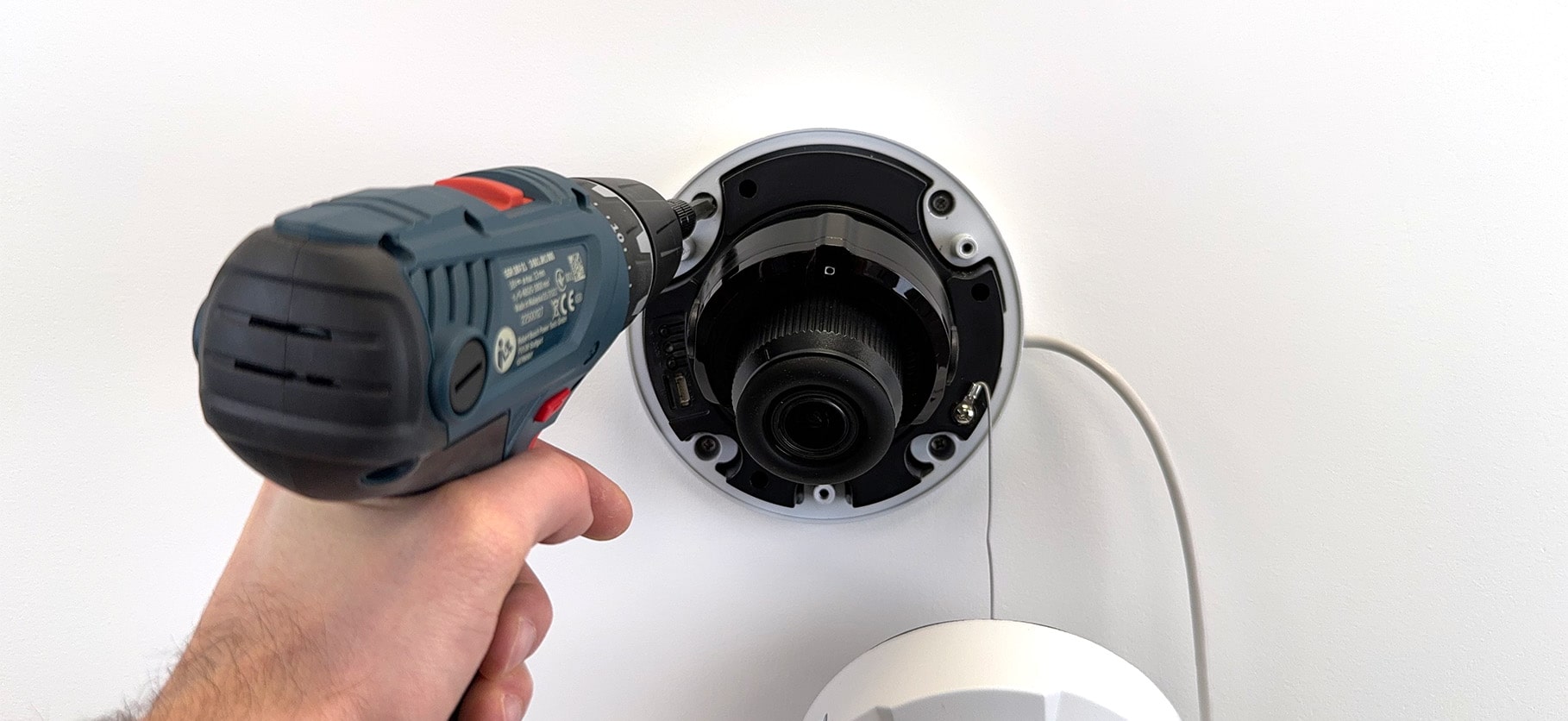

Route the cable through the wall or along the surface. Align the camera base with the pre-marked spots, then secure it with the screws.
Step 4: point the camera
It's easier to point the camera if you can see its live view. Connect the camera beforehand, and use the smartphone app to adjust and align it perfectly.
Follow the steps below to adjust the camera's position. The camera's zoom is operated remotely via the recorder, smartphone app, or PC software.

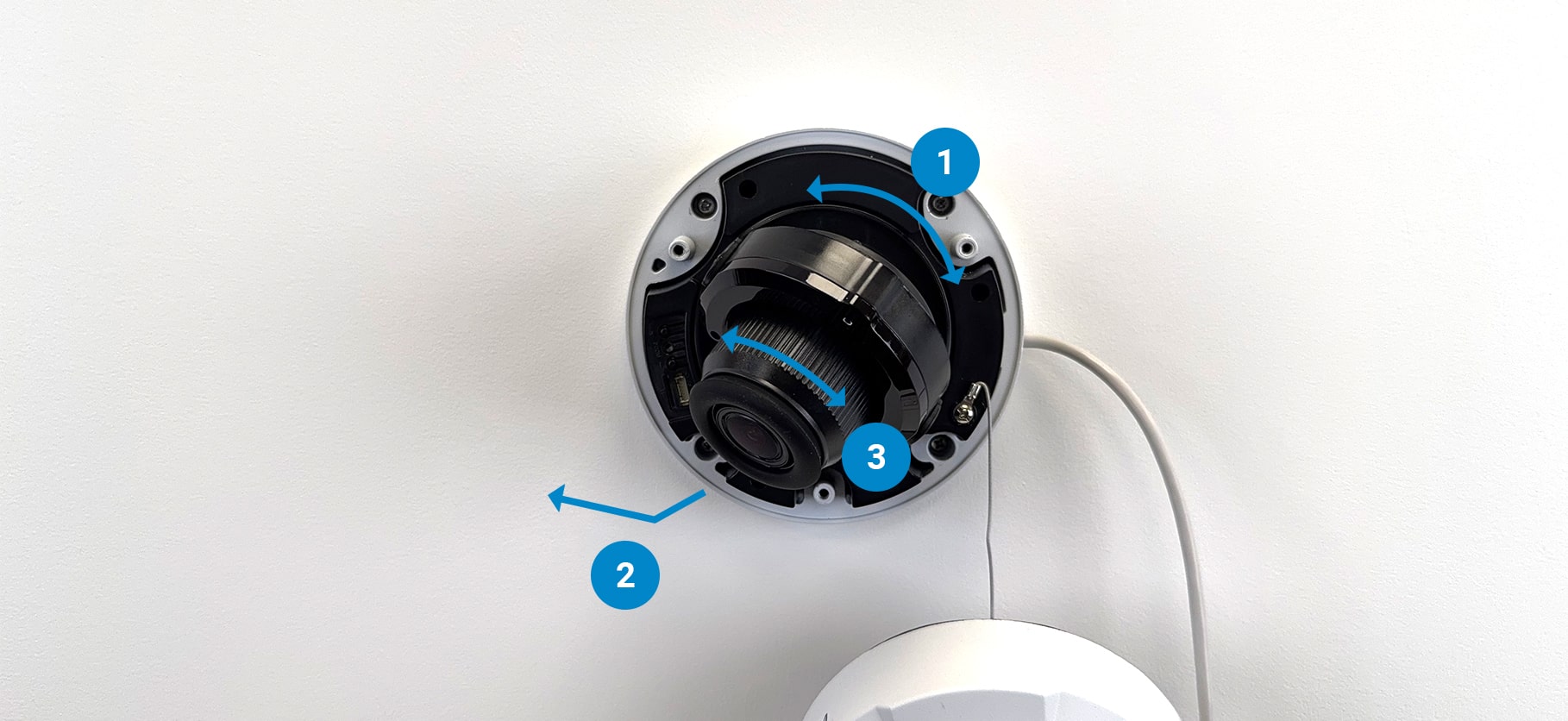

- Directional adjustment: rotate the base to set the direction the lens faces.
- Angle adjustment: tilt or “bend” the lens within the chosen direction.
- Horizon levelling: align the horizon to ensure its level.
Step 5: reattach the cover

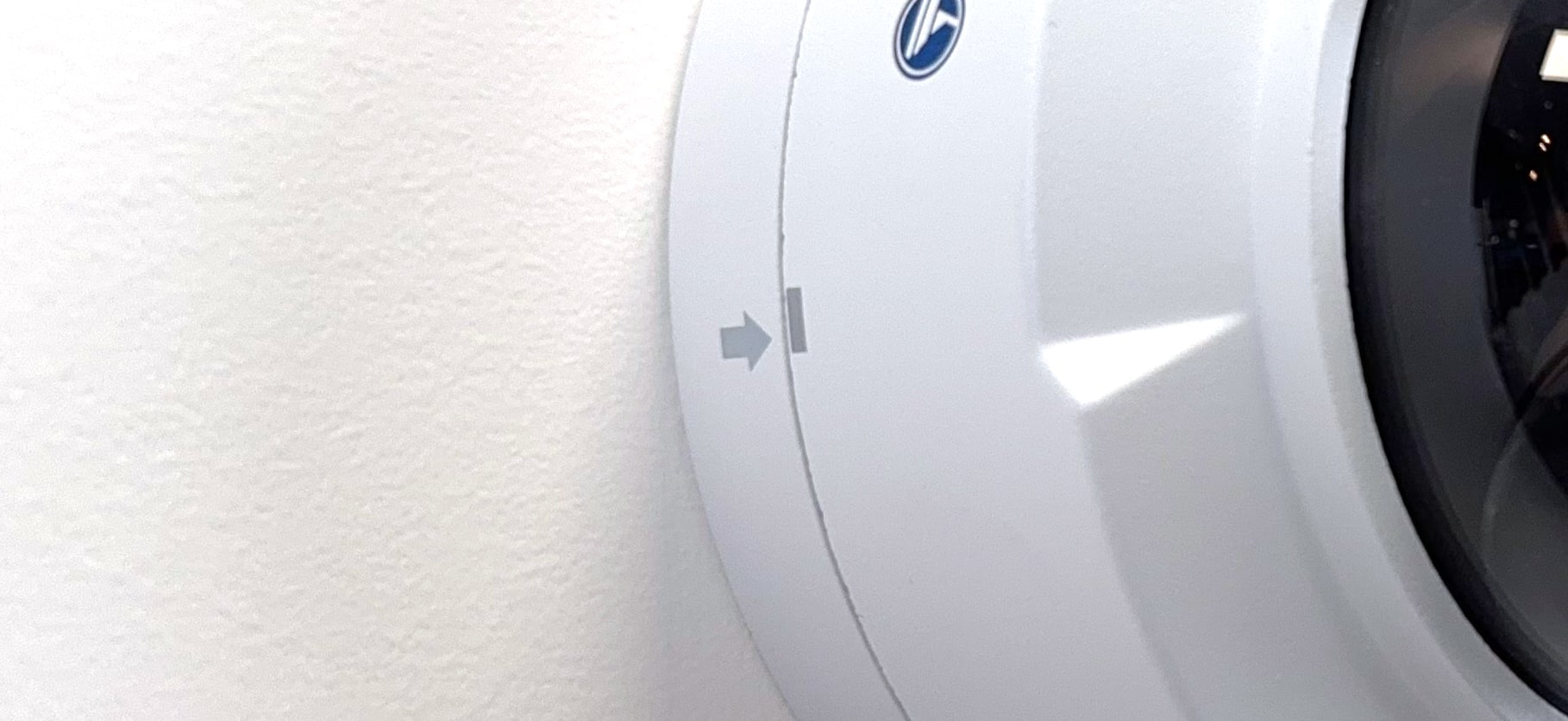

Align the cover with the markings and securely tighten the Torx screws to ensure a watertight seal. Finally, remove the protective foil, taking care not to touch the cover to keep it clean.
